TP-Link VIGI NVR1004H-4P-2TB, videorekordér, 4 channels, 4xPoE, 1xSATA, 1x100Mb/s LAN, 2xUSB2.0, 1xHDMI,1xVGA
Popis
Parametry
Hlídací pes

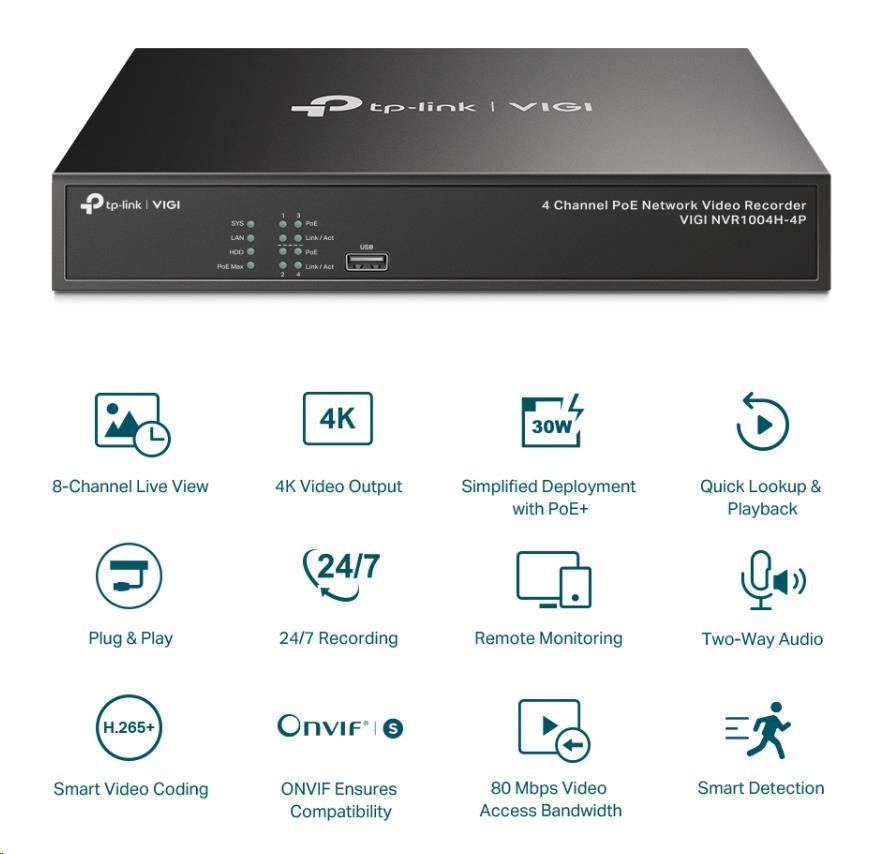

VIGI 4kanálový PoE+ síťový videorekordér
- 4kanálový živý náhled a výstup videa 4K HDMI

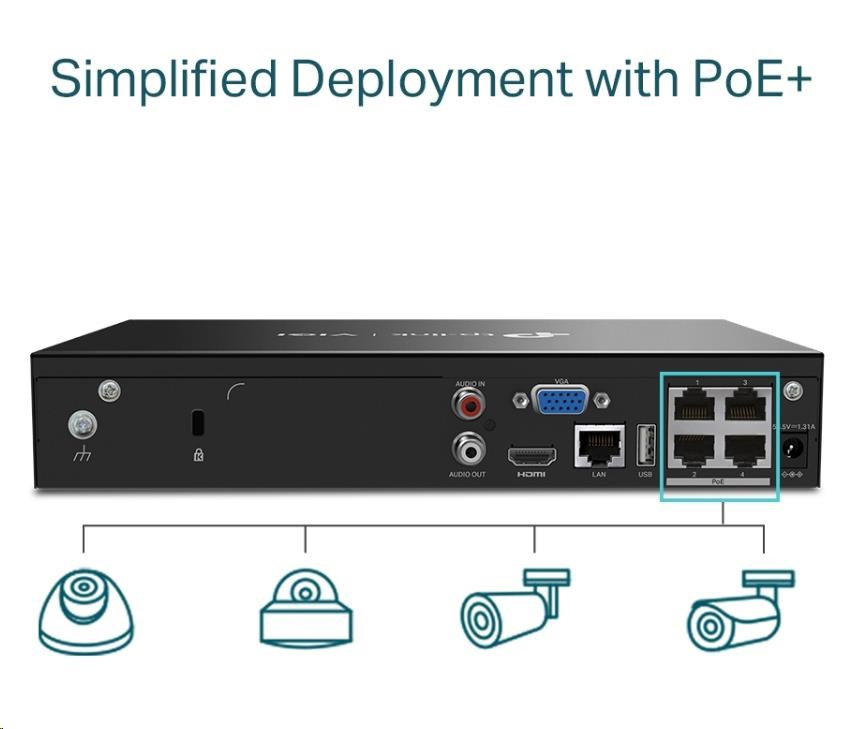

- 4× 10/100 Mb/s PoE+ Porty s 53 W PoE rozpočtem?
- 2-ch @ 8MP/ 4-ch @ 4MP dekódovací schopnost§

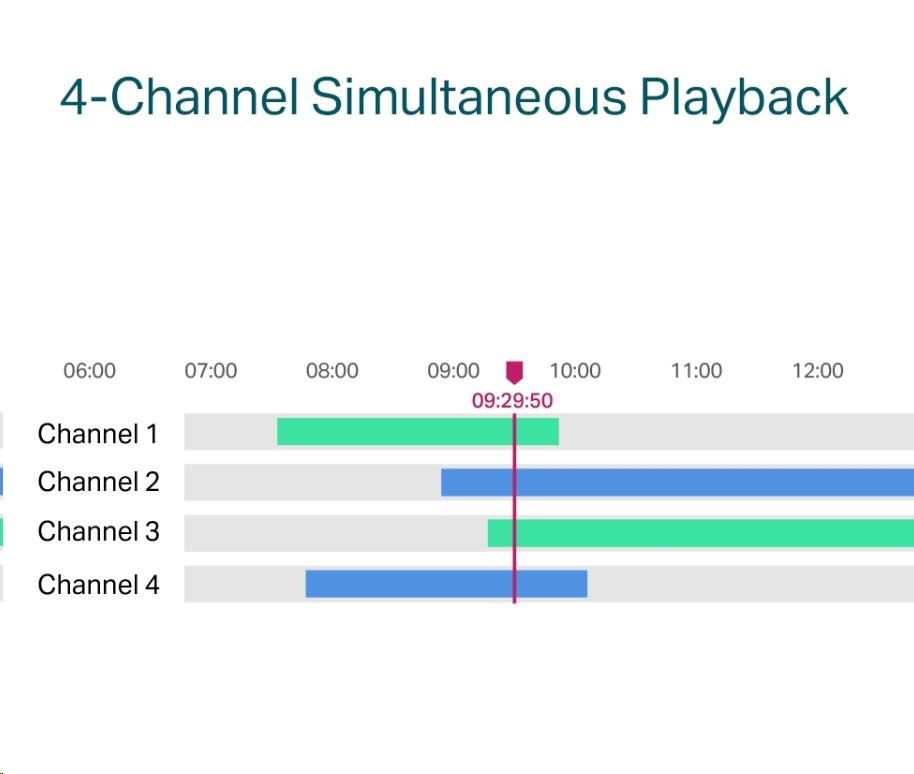

- Synchronní přehrávání 4 kanálů†
- Šířka pásma 80 Mb/s pro příchozí a 60 Mb/s pro odchozí data

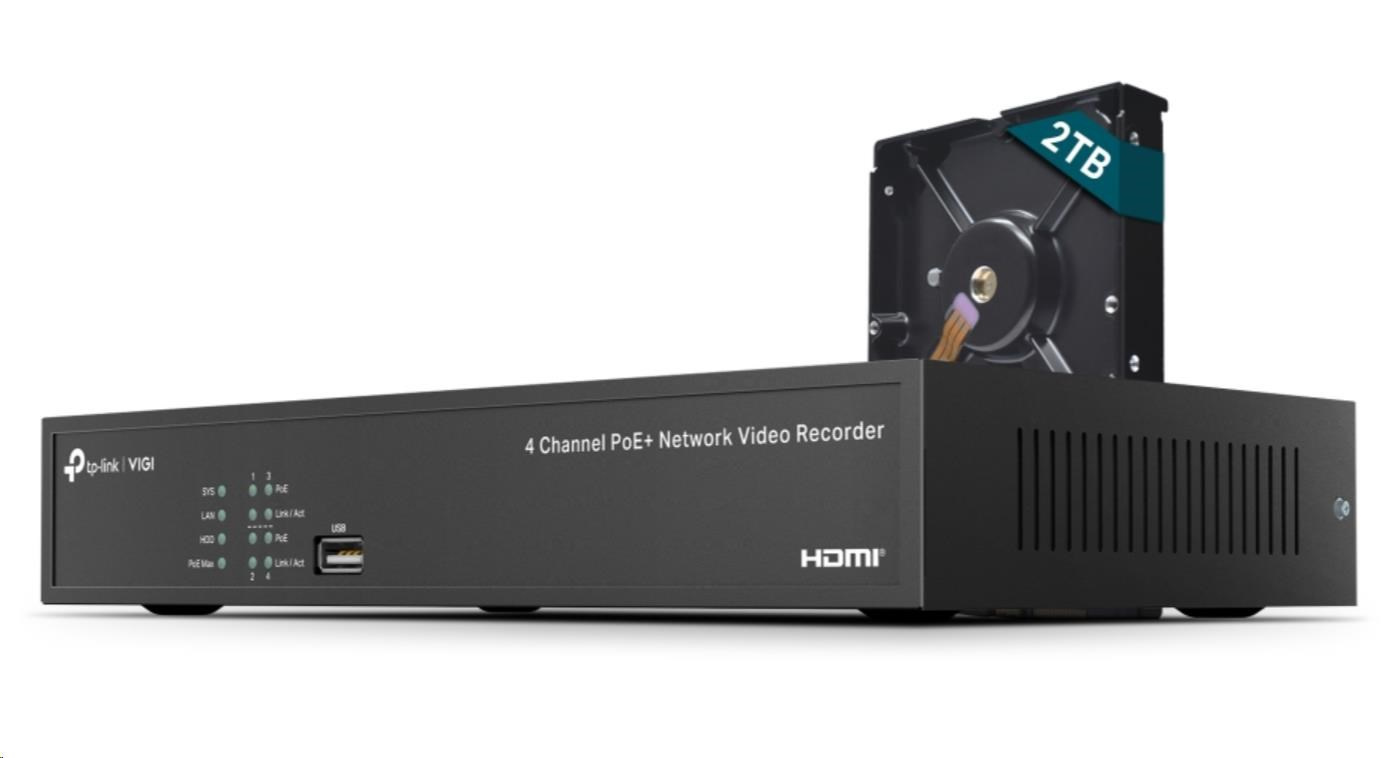

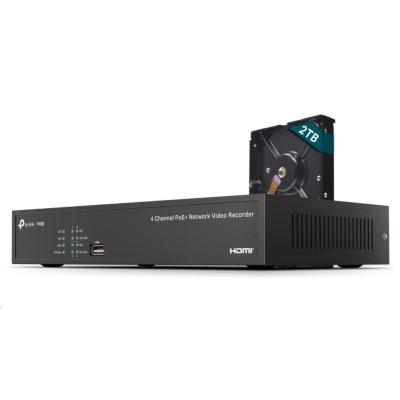

- 1× rozhraní SATA a 1 až 10 TB (1× 2TB HDD předinstalovaný)
- Kompresní technologie H.265+
- Současný výstup HDMI a VGA
- Vzdálené sledování
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel† |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP • 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| RECORD MANAGEMENT | |
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|

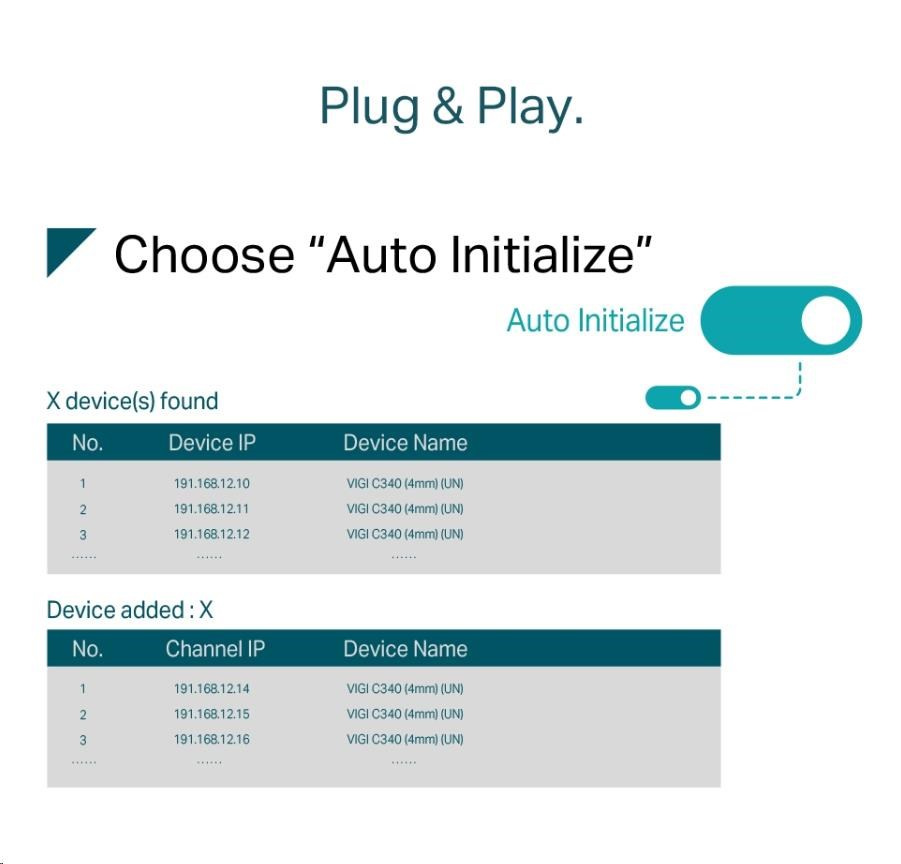

| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |

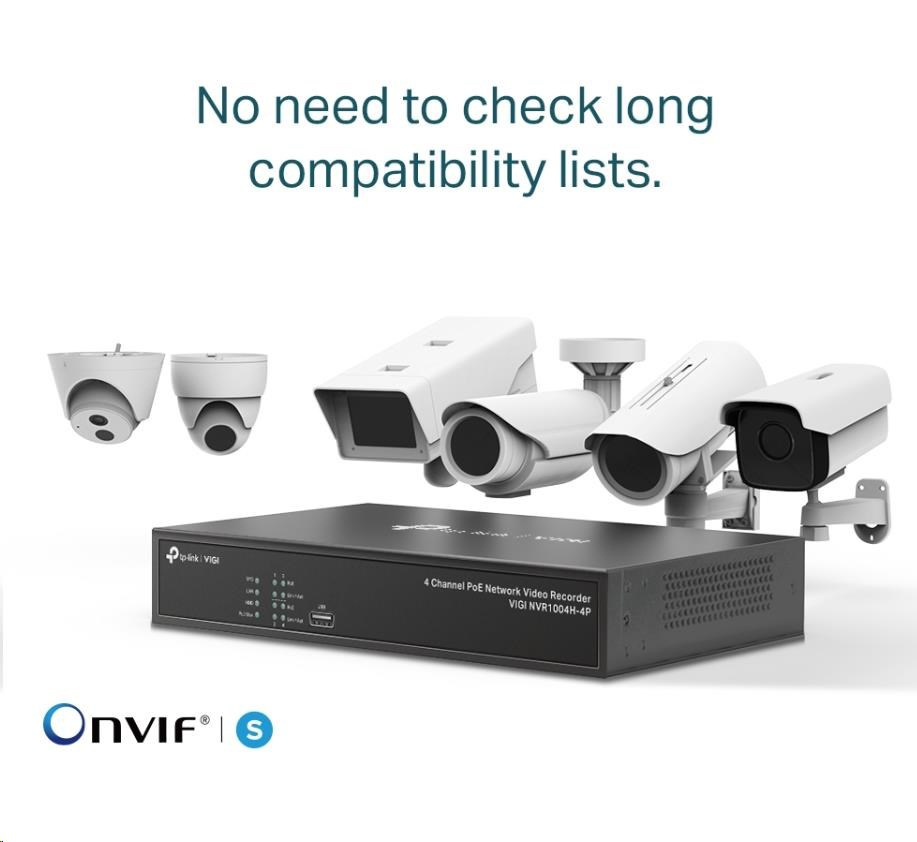

| Interoperability | ONVIF, CGI |

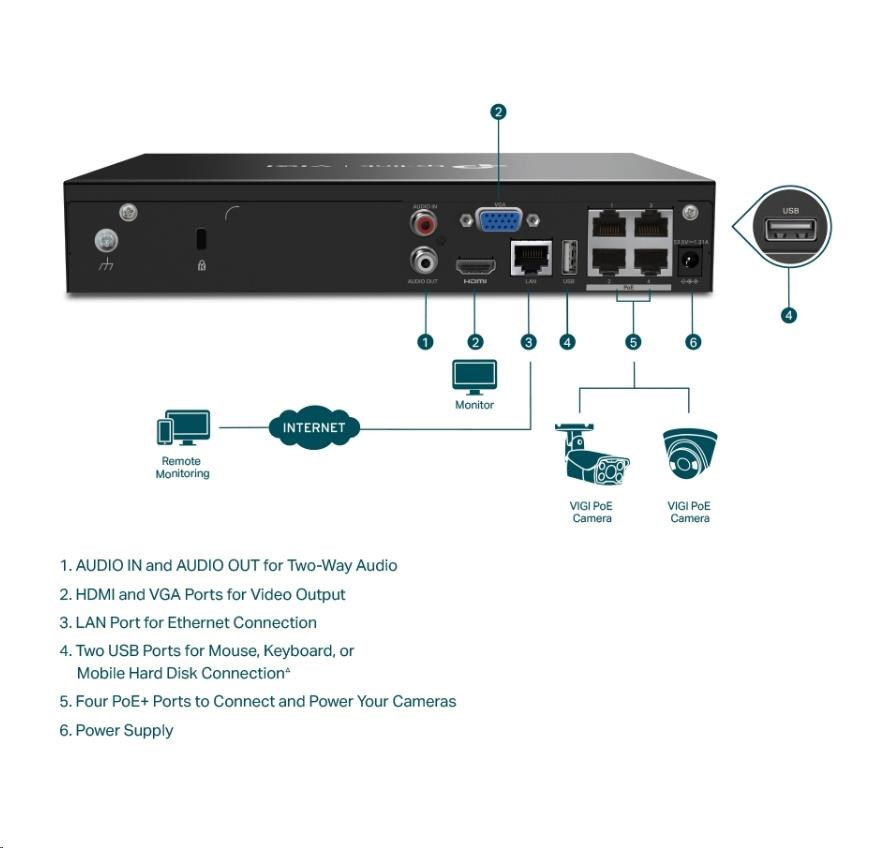

| EXTERNAL INTERFACE | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | • Up to 10 TB Capacity for Each HDD • 1 × 2TB HDD Preinstalled |
| POE | |
|---|---|
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W? Available for All PoE+ Ports, 30 W Max per Port |
| ALARM | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
| GENERAL | |
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder • Power Adapter • Power Cables • Rubber Feet • Mouse • Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
| Power Supply | 53.5V DC/1.31A |
| Power Consumption | • 4.25 W (Without Disk) • 13.10 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
Typ příslušenství ke kamerám:
Externí úložiště pro kamery
Aktuální cena produktu je19783Kč
s dph
