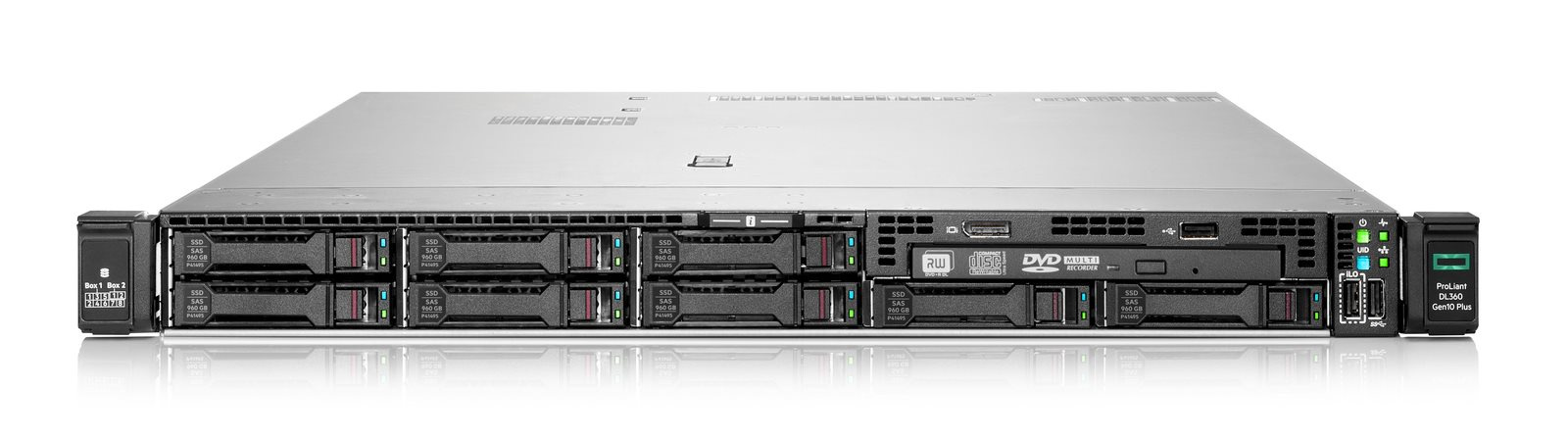

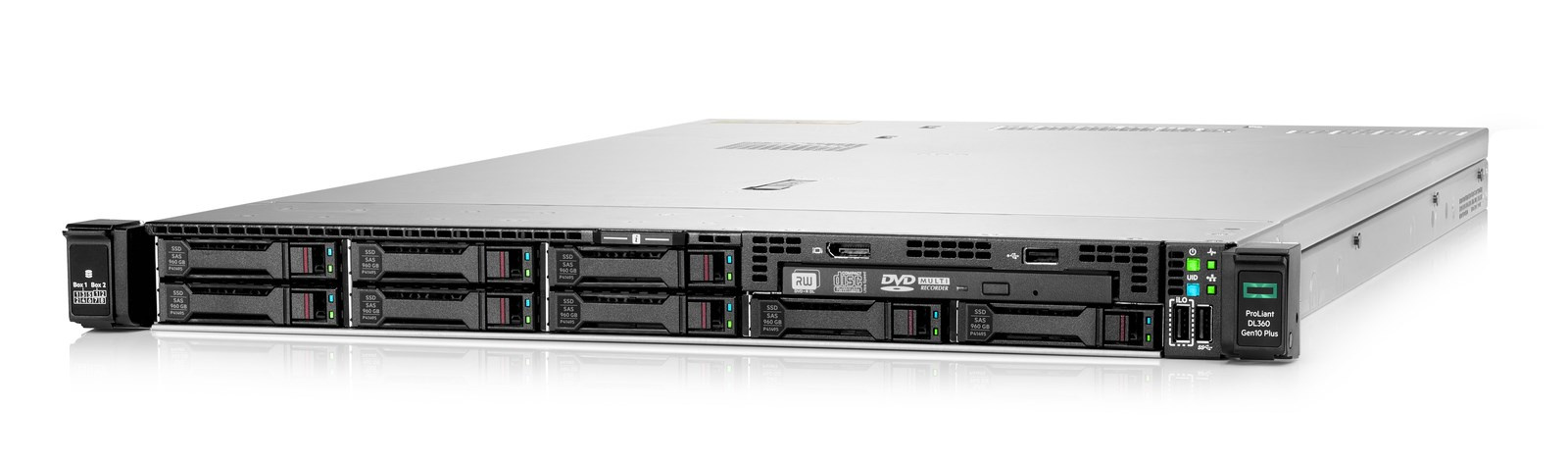

HPE PL DL360g10 Plus 4309Y (2.8G/8C) 2x32G (P06033) 2x480G (P40497) 2x800W MR416i-a/4G 8SFFBCU3 opc4x1G Smart Choice

HPE ProLiant DL360 Gen10 Plus - Smart Choice Models

SKU Number

P77128-425

P77171-425

P78116-DM5

Model Name

HPE ProLiant DL360 Gen10 Plus 4309Y 8c 1P 2x32GB-R 8SFF SR416i-a 2x480GB SSD 2x800W PS EU Server

HPE ProLiant DL360 Gen10 Plus 4309Y 8c 1P 2x32GB-R 8SFF SR416i-a 2x2.4TB HDD 2x800W PS EU Server

HPE ProLiant DL360 Gen10 Plus 4310 12c 1P 2x32GB-R 8SFF SR416i-a 2x960GB SSD 2x800W PS LA Server

Chassis

HPE ProLiant DL360 Gen10 Plus 8SFF NC Configure-to-order Server

Processor

4309Y (8 core, 2.8 GHz, 105W) Notes: 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.

4309Y (8 core, 2.8 GHz, 105W) Notes: 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.

4310 (12 core, 2.1 GHz, 120W)

Number of Processors

One with standard heatsink

Memory

64 GB (2x32 GB, 3200 MT/s) Notes: Runs at 2667 MT/s due to processor limitation.

Accelerators

Optional

Network Controller

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE Notes: No embedded networking.

Storage Controller

HPE SR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 24G Controller

Included Drives

2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

2x HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e HDD

2x HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

Optical Drive

Not included (Optical Drive options available)

Expansion Slots

2 PCIe: 1 x16 FH, 1 x16 LP

Power Supply

2x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

2x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

2x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Fans

5x Standard fans

Management

HPE iLO 5

Rail Kit

HPE ProLiant DL300 Gen10 Plus 1U SFF Easy Install Rail Kit Notes: Server does not support shelf mounted rail kits ("L" brackets).

Security

TPM (Trusted Platform Module)

Form Factor

1U Rack

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
